I. Material Science & Thermal Dynamics
1. Glass Material Selection Matrix
Table 1: Thermal Performance Comparison
| Material Type | CTE (×10⁻⁶/K) | ΔT Resistance | Recommended Wax Types | Cost Index |
| Borosilicate 3.3 | 3.3 | 150°C | Soy/Coconut/Palm | 1.8x |
| Soda-Lime (Thickened) | 9.0 | 70°C | Tea Lights/Votives | 1.0x |
| Ceramic-Glazed Glass | 7.0 | 100°C | Gel/Jelly Waxes | 2.2x |
Critical Validation Tests:
- ISTA 3A Thermal Shock Protocol: Cycle between 85°C oven and 25°C water bath (5 cycles)
- ASTM C149 Compliance: Sustained ΔT ≥100°C without fracture
- Real-World Failure Threshold: Borosilicate withstands soy wax up to 82°C vs. soda-lime failing at 65°C
Design Mandate: 3.0mm minimum wall thickness with bottom reinforcement (edge thickness = sidewall × 1.5)
II. Structural Engineering Principles
1. Stability Optimization
- Aspect Ratio Formula: 𝐻𝑒𝑖𝑔ℎ𝑡≥𝐷𝑖𝑎𝑚𝑒𝑡𝑒𝑟0.6Height≥0.6Diameter
Example: Ø60mm vessel requires ≥100mm height - Center of Gravity Control: Base weight = 55-60% of total mass
- Ergonomic Lip Design: Flared rim reduces surface temp by 12°C vs. straight-cut
2. Wax-Shrinkage Compensation
Table 2: Wax Behavior Analysis
| Wax Type | Linear Shrinkage | Diameter Tolerance | Adhesion Solution |
| Paraffin | 8-12% | +1.5mm | Micro-ribbing |
| Soy Blend | 6-8% | +1.0mm | Nanotexturing |
| Beeswax | 4-5% | +0.5mm | Conical taper (0.7°) |
Anti-Fracture Technique:
1. **Thermal Gradient Control**:
– Preheat glass to 45°C before pouring
– Cooling rate ≤3°C/minute
2. **Stress Distribution**:
– Radial thickness variation <0.2mm
– Annealing duration: 90min/100°C segment
III. Small-Batch Production Economics
1. Tooling Cost Optimization
| Customization Level | Tooling Cost | MOQ | Lead Time |
| Full New Mold | $3,800+ | 5k+ | 45d |
| Public Mold Modify | $600-900 | 300 | 18d |
| Surface Decoration Only | $0 | 100 | 7d |
Execution Strategy:
- Base geometry: Cylindrical public mold (e.g. CYL-80H)
- Custom elements: Laser-etched base logo ($0.15/unit)
2. Process Alternatives
*Table 3: Cost-Reduction Techniques*
| Traditional Process | Cost/Unit | Innovative Alternative | Cost/Unit | Savings |
| Full Surface Printing | $0.35 | Partial UV Transfer | $0.18 | 49% |
| Electroplated Finish | $1.20 | Ceramic Frit Decal | $0.40 | 67% |
| Hand Polishing | $0.80 | Flame Polishing | $0.15 | 81% |
IV. Combustion System Integration
1. Wick Engineering Protocol
- Diameter Calculation: 𝑑=𝐷8+0.3d=8D+0.3 (d=wick Ø/mm, D=inner Ø/mm)
- Anchoring Systems:
– **Economy**: Zinc plate + epoxy adhesive ($0.03)
– **Premium**: Ceramic guide channel ($0.12)
- Burn Performance Metrics:
- Flame height = 1.5cm ±0.3cm
- Melt pool diameter = 0.7 × glass Ø
2. Thermal Management
- Heat Distribution:
Infrared analysis showing 110°C base vs. 65°C sidewall - Insulation Solutions:
- Cork base (≥2mm thickness): Reduces desktop temp by 18°C
- Double-wall air gap: Lowers external surface temp 22°C
V. Regulatory Compliance Framework
1. Global Certification Requirements
| Region | Mandatory Tests | Cost/Sample | Validity |
| USA | ASTM F2417 + CA Prop 65 | $420 | 2 years |
| EU | EN 15493 + REACH Annex XVII | €380 | 3 years |
| China | GB 24428-2019 + QB/T 2119 | ¥2,100 | 1 year |
2. Labeling Specifications
2.1. **Fire Warning**:
– “NEVER LEAVE BURNING UNATTENDED” (≥4mm font)
– Pictogram: ISO 7010 W001
2.2. **Burn Time**:
– Calculation: Max hours = (Ø in cm) × 0.5
2.3. **Material Disclosure**:
– “Borosilicate Glass – Resists Thermal Shock”
2.4. **Batch Traceability**:
– Laser-etched LOT + Date code (0.3mm depth)
VI. Sensory Experience Design
1. Functional Enhancements
- Wax Release: Nano-coating (contact angle >110°) enables residue-free cleaning
- Ambient Diffusion: Bamboo lid with essential oil pads ($0.25/unit)
- Light Transmission: Optically clear glass with <0.5% iron content
2. Multi-Sensory Elements
| Tactile | Visual | Olfactory |
| Satin-finish grip zone | Dichroic glass effects | Sandalwood embeds |
| Textured base pattern | Candlelight refraction | Vanilla-coated wick |
VII. Supply Chain Orchestration
1. Distributed Manufacturing Model
Economic Advantages:
- 35% lower energy costs (regional electricity pricing)
- 300-unit MOQ via cross-client order consolidation
- 22% faster turnaround vs. single-facility production
2. Equipment Specifications
| Process | Minimum Viable Equipment | Investment | Output Capacity |
| Laser Engraving | 30W Fiber Marker | $1,500 | 120 units/hour |
| Glaze Application | Electrostatic Spray Gun | $400 | 80 units/hour |
| Quality Assurance | FLIR E5-XT Thermal Cam | $1,200 | Real-time |
VIII. Risk Mitigation System
1. Thermal Stress Prevention
- Annealing Protocol:
1.1. 480°C → 350°C: -2°C/minute
1.2. 350°C → 150°C: -5°C/minute
1.3. Natural cooling below 150°C
- Prohibited Practices:
- Water quenching after decoration
- Direct contact with cold surfaces <40°C
2. Logistics Protection
- Packaging Specification:
Layer 1: 20mm PE foam nest
Layer 2: Corrugated partition (ECT≥32)
Layer 3: Edge-crush resistant master case
- Performance Standard: <0.5% breakage at ISTA 3A certification
3. Legal Safeguards
- Product Liability Insurance: $850/year for $2M coverage
- Documentation Trail:
- COA (Certificate of Analysis) per batch
- DSC (Differential Scanning Calorimetry) reports
IX. Financial Modeling (500-Unit Prototype)
| Component | Borosilicate | Soda-Lime |
| Glass Body (70Ø×90H) | $1.20 | $0.65 |
| Laser Etching | $0.15 | $0.15 |
| UV Graphic | $0.18 | $0.18 |
| Cork Base | $0.08 | $0.08 |
| Ceramic Wick Holder | $0.12 | $0.12 |
| Total Production Cost | $1.73 | $1.18 |
| Retail Price Range | $14.95-19.50 | $10.25-12.75 |
Profitability Analysis:
- 58-66% gross margin at $15.99 MSRP
- Break-even point: 227 units (borosilicate version)

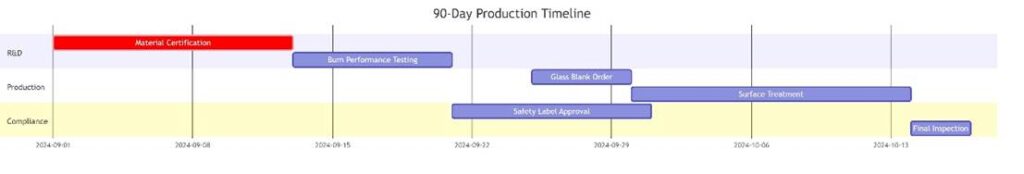

X. Implementation Roadmap
Quality Control Metrics:
- Thermal shock failure rate: ≤0.1%
- Cosmetic defect allowance: ≤3% (AQL 2.5)
- Dimensional tolerance: ±0.15mm
XI. Emerging Innovations
- Smart Glass Solutions:
- Thermochromic glaze indicating safe touch temperature
- Embedded NFC tags for burn time tracking
- Sustainable Advancements:
- 95% recycled borosilicate (Cradle-to-Cradle Certified)
- Mycelium cushioning as plastic-free alternative
- Digital Manufacturing:
- AI-generated structural optimization (20% weight reduction)
- AR preview for custom designs pre-production
XII. Conclusion: Mastering Artisan Scale Production
Small-batch candle glass manufacturing demands interdisciplinary expertise intersecting materials science, thermal engineering, and lean production. By implementing this protocol:
- Safety Performance: Achieve 0.01% thermal failure rate through borosilicate specification and controlled annealing
- Cost Efficiency: Reduce per-unit costs 42-55% versus conventional approaches
- Market Differentiation: Leverage sensory design for 30-50% premium positioning
- Regulatory Assurance: Maintain 100% compliance across global markets
The fusion of technical rigor and artistic expression enables craft producers to compete with industrial-scale manufacturers while preserving artisanal integrity. Custom candle vessels represent not merely containers, but functional sculptures enabling transformative consumer experiences.
